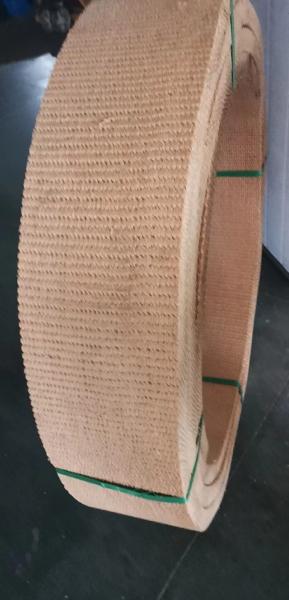

100% Cotton Industrial Friction Materials Non asbestos woven brake
lining
Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We
specialize in producing Asbestos and Non-asbestos friction and
sealing materials.
Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.
Friction Products are widely used for braking deceleration and
transmitting power of big power machinery, such as ship winch, dock
crane, drilling machinery, lifting machine, building machinery etc.
It is characterized with high performance of wear resistance, low
wear rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc.
Description:
Cotton Woven Brake Liningowns high performance of wear resistance,
low wear rate, long service life. It is definitely 100% non-toxic,
pollution free and environmental product.
Cotton Woven Brake Lining selects 100% pure cotton yarn woven by
advanced loom machinery & equipment then impregnate into specially
formulated polymer resin, and through high temperature, low
temperature etc. processing workmanship.
Quick Detail:
100% Cotton Industrial Friction Materials Non asbestos woven brake
lining
Model: MS-E 100% Cotton Woven Brake Lining
Materials: 100% pure cotton yarn, Cashew Nut Oil resin
Working condition: 100℃,0.8~1.0Mpa Pressure.
Applied field: Used for braking deceleration and transmitting power
of light power machineries, such as sugar manufacturing and food
processing machineries etc.
Specification: T(5~25)x W(≤400)mm; Available Length: 10m,15m, 20m.
Color: Yellow
Applications:100% Cotton Industrial Friction Materials Non asbestos woven brake
lining
It is used for braking deceleration and transmitting power of light
power machinery, such as sugar manufacturing and food processing
machinery etc.
Specifications:100% Cotton Industrial Friction Materials Non asbestos woven brake
lining
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.25~0.55 | ≤1.5 x 10-7 |
Competitive Advantage:100% Cotton Industrial Friction Materials Non asbestos woven brake
lining
We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into specially
formulated polymer resin, through high temperature, low temperature
etc. processing workmanship.
