Non-Asbestos Brake Lining Roll for Winch Windlass Farm Tractor
Crane Hoist Elevator
Ningbo Xinyan Friction Materials Co., Ltd.specializes in producing
Asbestos and Non-asbestos friction. Friction Products are widely
used for braking deceleration and transmitting power of big power
machinery, such as ship winch, dock crane, drilling machinery,
lifting machine, building machinery etc. It is characterized with
high performance of wear resistance, low wear rate, high tensile
strength, good softness, high temperature resistance, corrosion
resistance, oil resistance, long service life and impact resistance
etc.
We own advanced equipment, top technology and skillful workers
which ensure the goods high quality. Our products have passed
ISO9001:2000 international quality system certification and our
factory has import-export operations right, which can make you save
the cost on some extent. We are always playing great role in
international market such as America, Europe and Southeast Asia
etc.
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your
visiting to our factory and we will offer you superior quality
products and perfect service.
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Non-Asbestos Brake Lining Roll for Winch Windlass Farm Tractor
Crane Hoist Elevator
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Wear - Resistant Brake Shoe Lining Material AsWoven Brake
Liningbestos-free
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Non-Asbestos Brake Lining Roll for Winch Windlass Farm Tractor
Crane Hoist Elevator
Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor
brake windlass
Our factory could produce the raw materials for brake lining. We
have yarn machines, we produce yarns and then weeve yarns into
brake lining rolls by ourself, so that we could control the whole
quanlity and cost very well.

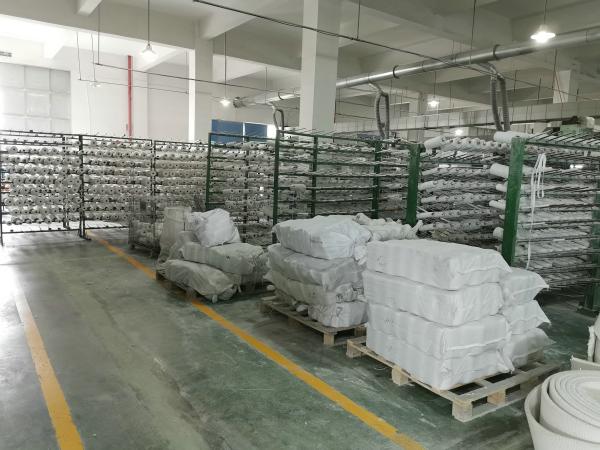

Our factory has 6 weaving machines and work with many customers
around the world. I will make the quotation list for you after
getting your detail size and qty.
