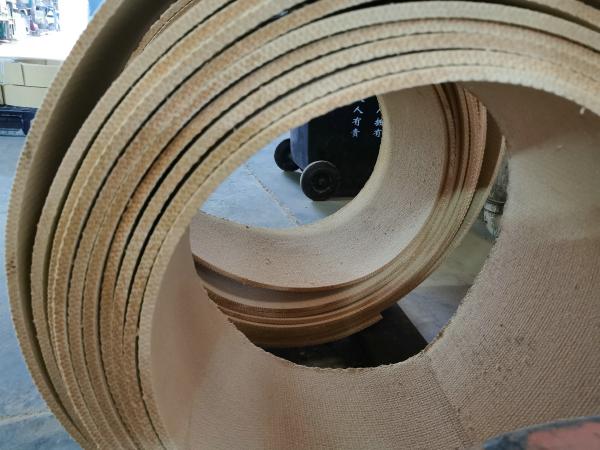

Asbestos Free Woven Brake Lining Anchor brake lining with Brass
ship windlass
Ningbo Xinyan Friction Materials Co., Ltd.specializes in producing
Asbestos and Non-asbestos friction. Friction Products are widely
used for braking deceleration and transmitting power of big power
machinery, such as ship winch, dock crane, drilling machinery,
lifting machine, building machinery etc. It is characterized with
high performance of wear resistance, low wear rate, high tensile
strength, good softness, high temperature resistance, corrosion
resistance, oil resistance, long service life and impact resistance
etc.
We own advanced equipment, top technology and skillful workers
which ensure the goods high quality. Our products have passed
ISO9001:2000 international quality system certification and our
factory has import-export operations right, which can make you save
the cost on some extent. We are always playing great role in
international market such as America, Europe and Southeast Asia
etc.
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your
visiting to our factory and we will offer you superior quality
products and perfect service.
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Quick Detail:Asbestos Free Woven Brake Lining Anchor brake lining with Brass
ship windlass
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Description:Asbestos Free Woven Brake Roll Lining For Sugar Mills Windlass
winch anchor
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
Brake Lining is extensively used in marine and industrial
applications. It is suitable for
winch and windlass, hoist, crane, winder, drilling and workover
rigs, agricultural
vehicle, elevator, and construction machinery.
Specifications:Asbestos Free Woven Brake Lining Anchor brake lining with Brass
ship windlass
Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor
brake windlass
Our factory could produce the raw materials for brake lining. We
have yarn machines, we produce yarns and then weeve yarns into
brake lining rolls by ourself, so that we could control the whole
quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers
around the world. I will make the quotation list for you after
getting your detail size and qty.
