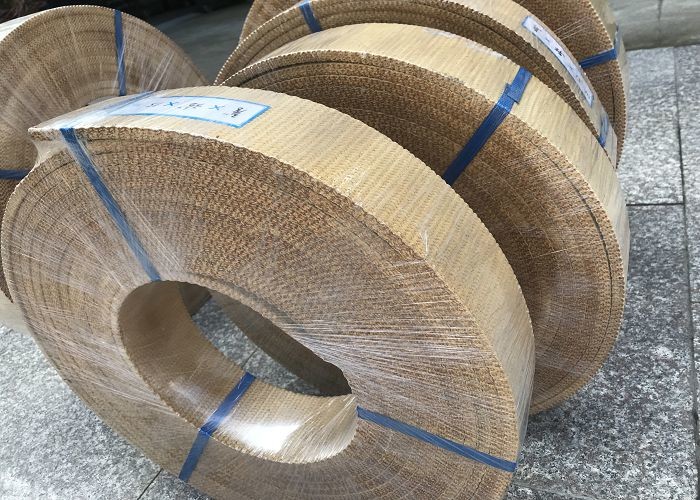

Brass Wire Reinforced Non-Asbestos Brake Lining for Mooring Winch Anchor Windlass
We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:Asbestos Free Woven Brake Roll Lining For Sugar Mills Windlass winch anchor
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Brake Lining is extensively used in marine and industrial applications. It is suitable for
winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural
vehicle, elevator, and construction machinery.





Specifications:Brass Wire Reinforced Non-Asbestos Brake Lining for Mooring Winch Anchor Windlass

Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials.

Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.

Friction Products are widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc. It is characterized with high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc.

Sealing products are mainly applied in shipbuilding, aviation, petroleum, chemical industry, foodstuff and medicine with the good merits of heat preservation, heat insulation, sealing and insulation.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.
