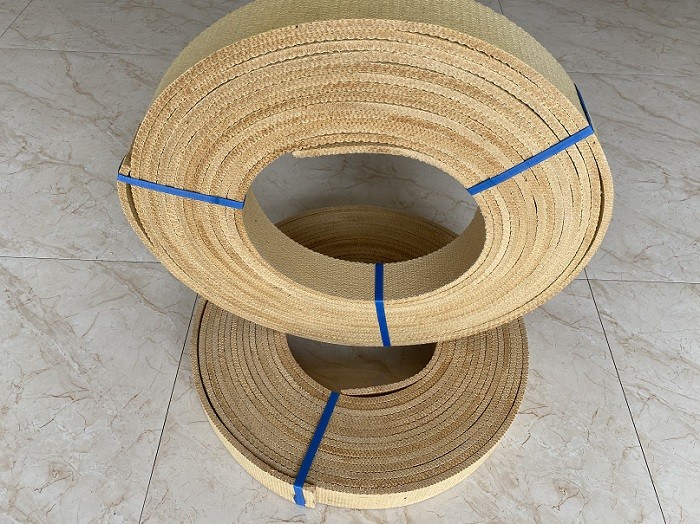

Oil Well Drilling Non-asbestos Woven Brake Lining Roll / Friction
Lining Material
We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into
specially formulated polymer resin, through high temperature, low
temperature etc. processing workmanship.
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
It is widely used for braking deceleration and transmitting power
of big power machineries, such as ship winch, dock crane, drilling
machineries, lifting machine, building machinery etc.
Quick Detail:Oil Well Drilling Non-asbestos Woven Brake Lining Roll / Friction
Lining Material
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Oil Well Drilling Non-asbestos Woven Brake Lining Roll / Friction
Lining Material
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Oil Well Drilling Non-asbestos Woven Brake Lining Roll / Friction
Lining Material
Competitive Advantage:Brass Wire Reinforced Asbestos Free Brake Lining Woven Lining Rolls
Wire Inside Product

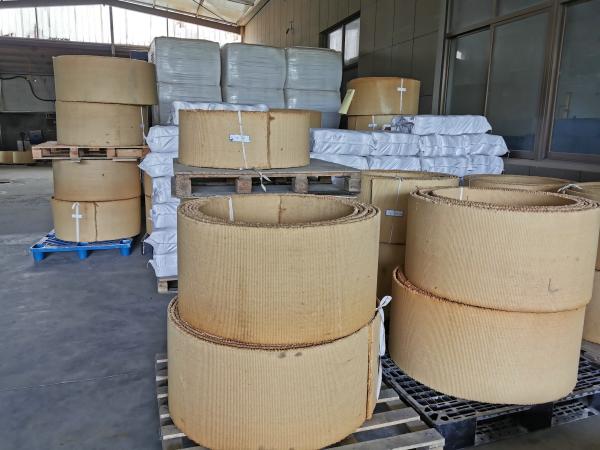

Our factory could produce the raw materials for brake lining. We
have yarn machines, we produce yarns and then weeve yarns into
brake lining rolls by ourself, so that we could control the whole
quanlity and cost very well.

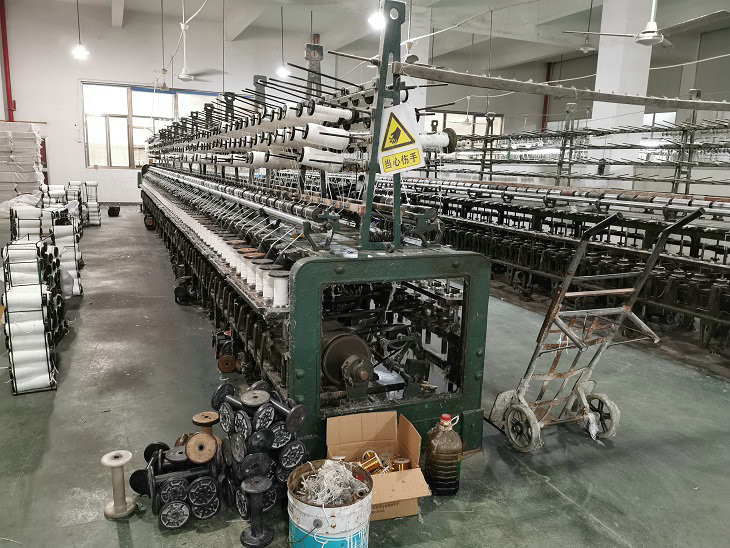

Our factory has 6 weaving machines and work with many customers
around the world. I will make the quotation list for you after
getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86)
13771895935 to get more informations
