Non-Asbestos Industrial Brake Lining Roll For Ship Anchor Windlass
Winch Brake Band
Quick Detail:
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Description:
Non-asbestos Industrial Brake Lining Roll for ship anchor windlass
winch brake band
Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen
Industrial Park by National Highway 329, with convenient
transportation. The factory covers an area of 6,000 square meters,
which is a comprehensive enterprise specializing in the production
and sales of asbestos products, non-asbestos products, friction,
sealing, anticorrosion, insulation and fire prevention materials.
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

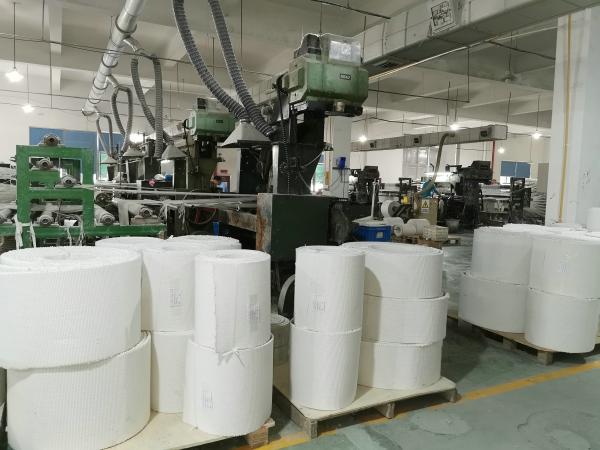

We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into specially
formulated polymer resin, through high temperature, low temperature
etc. processing workmanship.
Applications:
Non-asbestos Industrial Brake Lining Roll for ship anchor windlass
winch brake band
It is widely used for braking deceleration and transmitting power
of big power machineries, such as ship winch, dock crane, drilling
machineries, lifting machine, building machinery etc.
Specifications:
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Competitive Advantage:
Non-asbestos Industrial Brake Lining Roll for ship anchor windlass
winch brake band
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
