Asbestos Free Woven Mooring Winch Brake Lining Non asbestos woven
brake lining
Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen
Industrial Park by National Highway 329, with convenient
transportation. The factory covers an area of 6,000 square meters,
which is a comprehensive enterprise specializing in the production
and sales of asbestos products, non-asbestos products, friction,
sealing, anticorrosion, insulation and fire prevention materials.
Our main products: Asbestos and Non-asbestos Woven Brake Lining,
Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure,
medium pressure and high pressure, Asbestos and Non-asbestos Yarns,
Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon
Fiber Products, Ceramic Fiber Products and so on.
Quick Detail:Asbestos Free Woven Mooring Winch Brake Lining Non asbestos woven
brake lining
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Asbestos Free Woven Mooring Winch Brake Lining Non asbestos woven
brake lining
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.

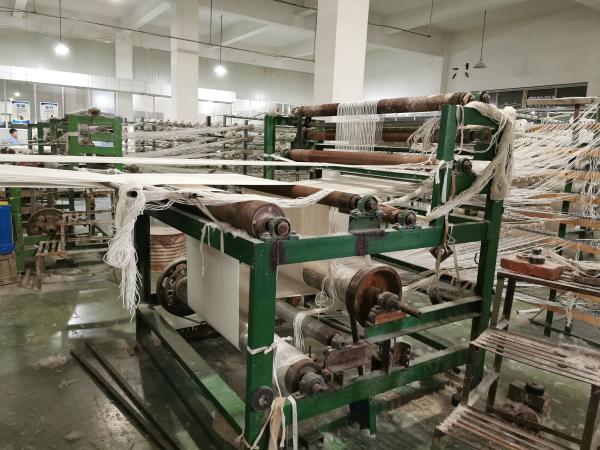

We own advanced equipment, top technology and skillful workers
which ensure the goods high quality. Our products have passed
ISO9001:2000 international quality system certification and our
factory has import-export operations right, which can make you save
the cost on some extent. We are always playing great role in
international market such as America, Europe and Southeast Asia
etc.
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your
visiting to our factory and we will offer you superior quality
products and perfect service.
