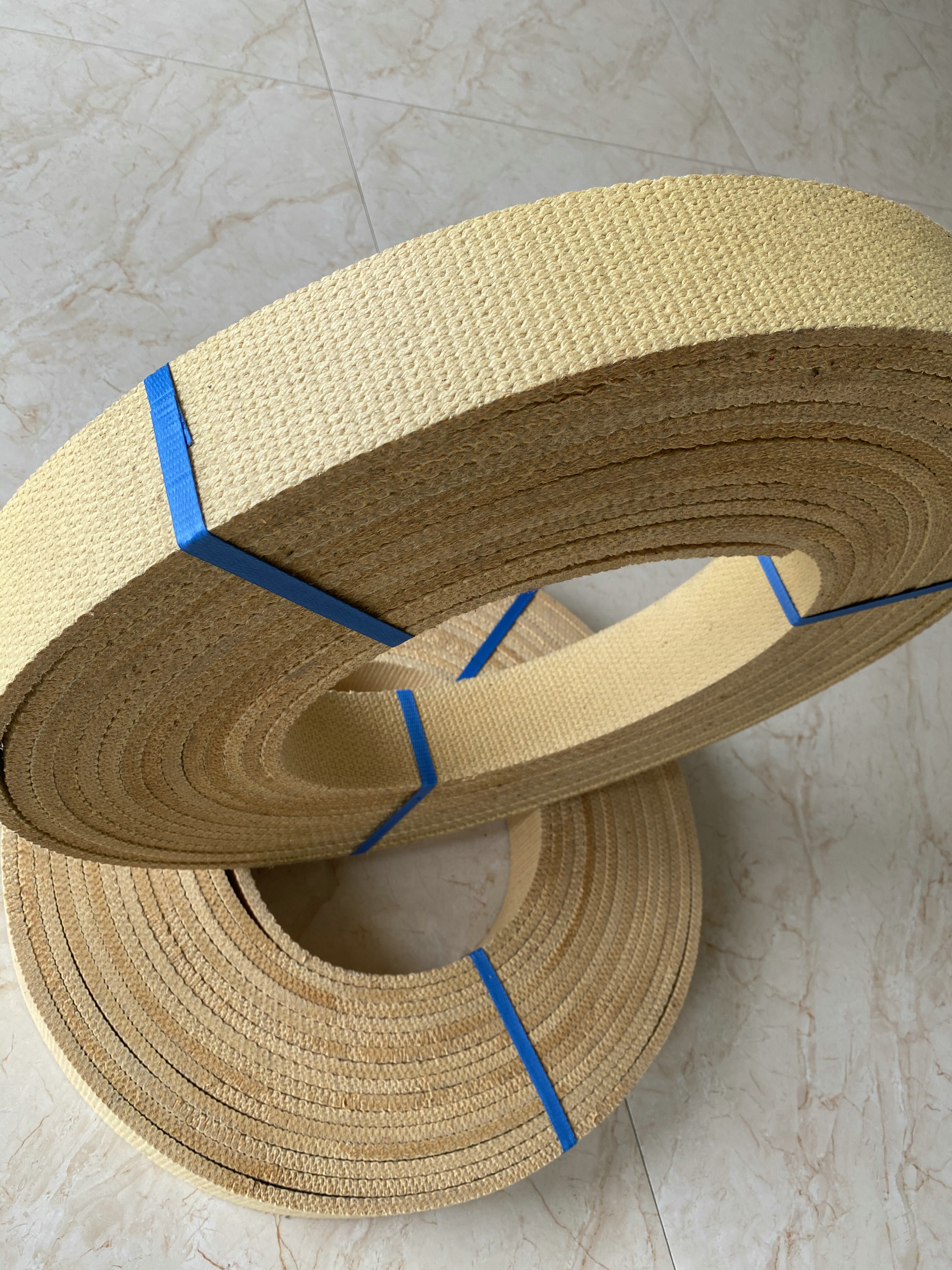

Non Asbestos Brake Lining Brass Wire Ship Winch Lifting Machine
Woven Brake Lining
Specifications:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine
Woven Brake Lining
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine
Woven Brake Lining
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
Applications:Woven Brake Lining is extensively used in marine and industrial
applications. It is suitable for winch and windlass, hoist, crane,
winder, drilling and workoverrigs, agricultural vehicle, elevator,
industrial drum brakes, mining machinery and construction
machinery. When it is supplied for use on oil immersed
applications,the friction value will be much lower than it is used
in dry conditions.
Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine
Woven Brake Lining
Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen
Industrial Park by National Highway 329, with convenient
transportation. The factory covers an area of 6,000 square meters,
which is a comprehensive enterprise specializing in the production
and sales of asbestos products, non-asbestos products, friction,
sealing, anticorrosion, insulation and fire prevention materials.
Our main products: Asbestos and Non-asbestos Woven Brake Lining,
Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure,
medium pressure and high pressure, Asbestos and Non-asbestos Yarns,
Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon
Fiber Products, Ceramic Fiber Products and so on.
Our advantage is that we also produce raw materials of non-asbestos
yarns, then weave into brake lining by ourself, so that we have the
whole cost and quality control.Our factory has 6 weaving machines
and work with many customers around the world. I will make the
quotation list for you after getting your detail size and qty. You
could wechat/whatsapp me at (86) 13771895935 to get more
informations.
Quick Detail:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine
Woven Brake Lining
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Description:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine
Woven Brake Lining
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into specially
formulated polymer resin, through high temperature, low temperature
etc. processing workmanship.
