Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll

Supply Ability
Supply Ability:
20 Tons
Packaging & Delivery
Packaging Details
Standard Packing For Shipment
Port
Ningbo
Lead Time :
30 days After Received Payment

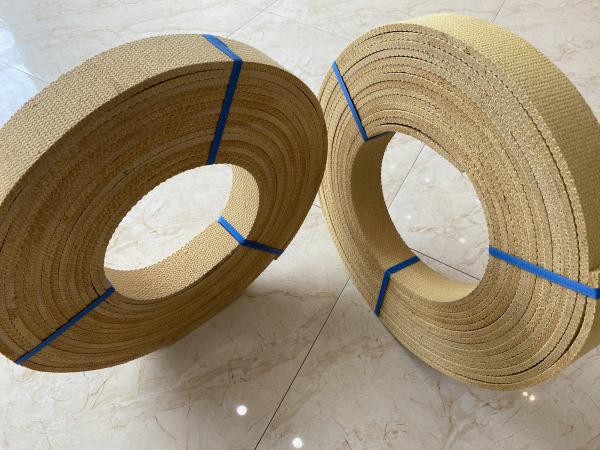

woven brake lining roll is made from viscose fiber, brass and melamine resin. woven brake lining roll is high flexibility, good wear rate, stable friction coefficient and without any environment pollution.

Applied field widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.

Quick Detail:

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Applications:

It is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.

Specifications:

Competitive Advantage:

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials.

Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.

Friction Products are widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc. It is characterized with high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc.

Sealing products are mainly applied in shipbuilding, aviation, petroleum, chemical industry, foodstuff and medicine with the good merits of heat preservation, heat insulation, sealing and insulation.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.
