Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass

Description:

Being reinforced by brass wires, brake Lining with brass wire inside is with good wear performance. At the same time, it's without asbestos, eco-friendly.

It's made of friction material, brass wire, yarns and resin. It's applicable to industrial machinery that requires a high degree of friction, can be used in tractors, oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, motorcycles and among many other industrial fields.

Woven Brake Linings are widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.

Specifications:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass

Quick Detail:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow

Competitive Advantage:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch Anchor Windlass

We produce non-asbestos yarns by ourself and weave yarns to non-asbestos brake lining. We can control the whole quality from raw materials to finished products. You don't need feel worry about the quality. I can say that we have the best cost performance in Chinese market.

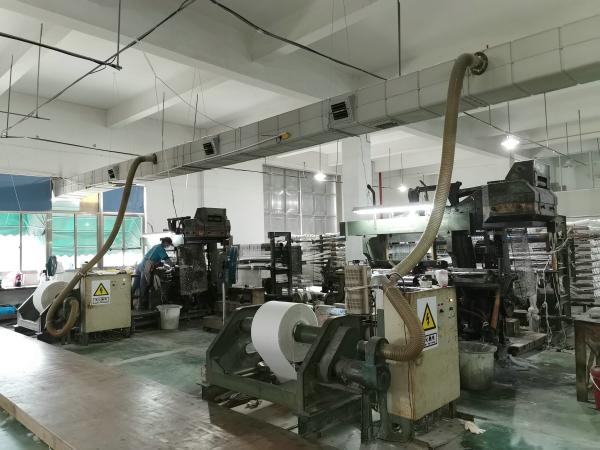

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Ningbo Xinyan Friction Materials Co., Ltd. was set up in 2003. We specialize in producing Asbestos and Non-asbestos friction and sealing materials.

Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.

Friction Products are widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc. It is characterized with high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc.

Sealing products are mainly applied in shipbuilding, aviation, petroleum, chemical industry, foodstuff and medicine with the good merits of heat preservation, heat insulation, sealing and insulation.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.
