Viscose Fiber Flexible Brake Lining Material High Wear Performance
Woven Lining,Asbestos Free Brake Lining
Description:
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Woven Brake Lining Roll is widely used in decelerating and braking
of engineer machines, industry machine and mining machines, such as
Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power
Generator, Construction Machinery, Elevator, Lift, Pickup, Light
Truck...
Our company has more than 25 years experience in manufacturing
Woven Brake Linings, which can bring mutual benefit and profits to
you and us.
Materials:
Brass wire, glass fiber, viscose fiber, resin and friction
materials, etc. Its coefficient of friction has a high capacity to absorb loads by
impact and excellent resistance to mechanical stress.
Characteristics:
1. Good flexibility,
2. Excellent oil resistance and water resistance,
3. High tenacity, shock resisting, heat resisting,
4. Good duality and anastomosis, agile brake.
Specifications:Viscose Fiber Flexible Brake Lining Material High Wear Performance
Woven Lining,Asbestos Free Brake Lining
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Quick Detail:Viscose Fiber Flexible Brake Lining Material High Wear Performance
Woven Lining,Asbestos Free Brake Lining
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Competitive Advantage:Viscose Fiber Flexible Brake Lining Material High Wear Performance
Woven Lining,Asbestos Free Brake Lining
We produce non-asbestos yarns by ourself and weave yarns to
non-asbestos brake lining. We can control the whole quality from
raw materials to finished products. You don't need feel worry about
the quality. I can say that we have the best cost performance in
Chinese market.

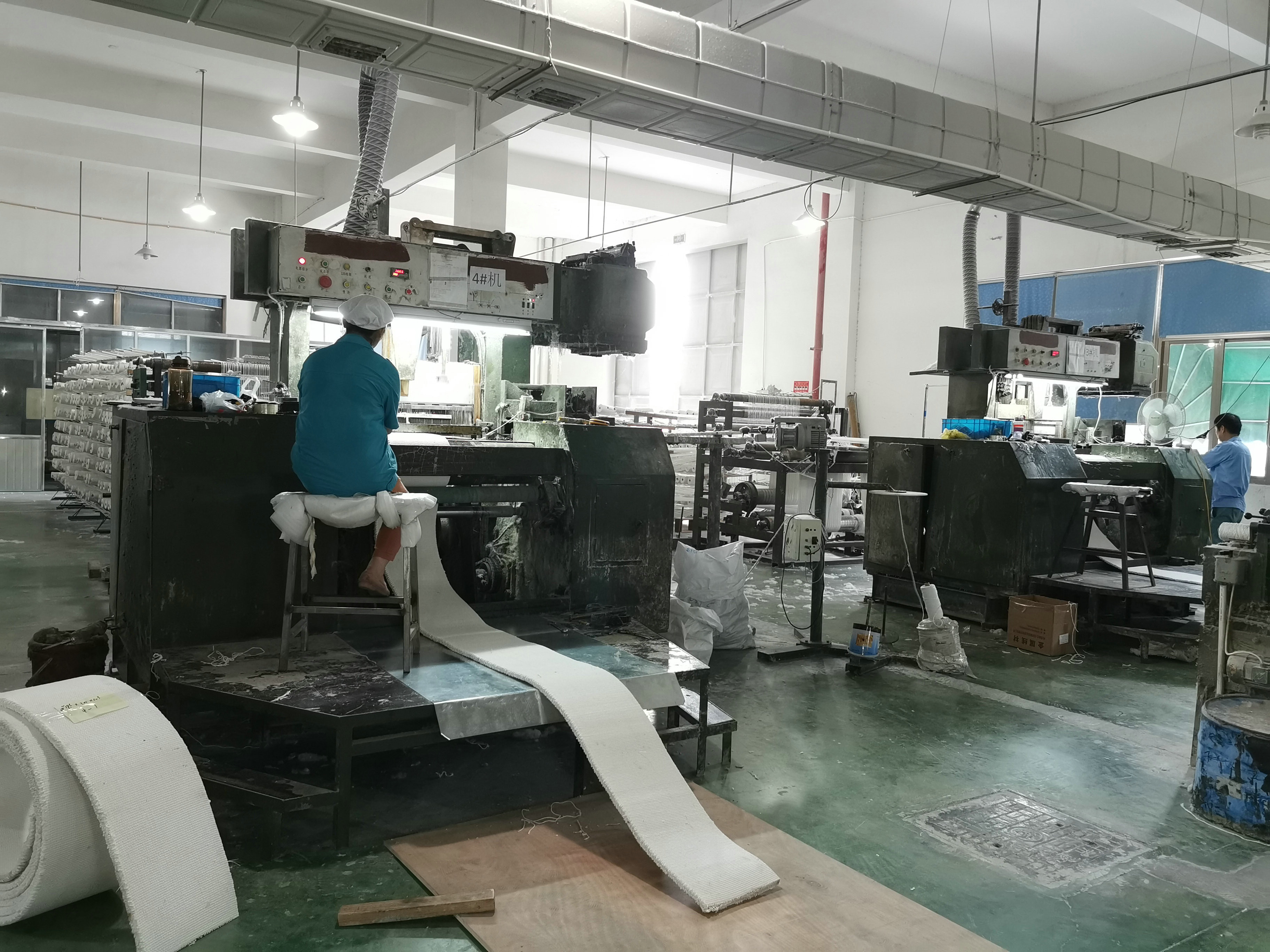

We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into specially
formulated polymer resin, through high temperature, low temperature
etc. processing workmanship.
