Non-asbestos Woven Brake Lining ship anchor brake windlass brake
melamine resin brass wire
Ningbo Xinyan is a professional manufacturer of Non-asbestos
friction material in China. More than 80% of our products have been
exported to European, Asian,Africa, South American markets. As the
leading manufacturer of woven brake lining in the world, we are
stable and sustaining partner of the world famous winch
maker.Relying on superior quality, strong technical power,
excellent service, prompt delivery, We win good reputation and
recognition from the domestic and abroad market, and has built
long-term and friendly business relationship with the large
state-owned enterprise and world famous companies. With
comprehensive test equipment,Ningbo Xinyan is capable to offer the
compared testing service and customized friction products.
Our advantage is that we also produce raw materials of non-asbestos
yarns, then weave into brake lining by ourself, so that we have the

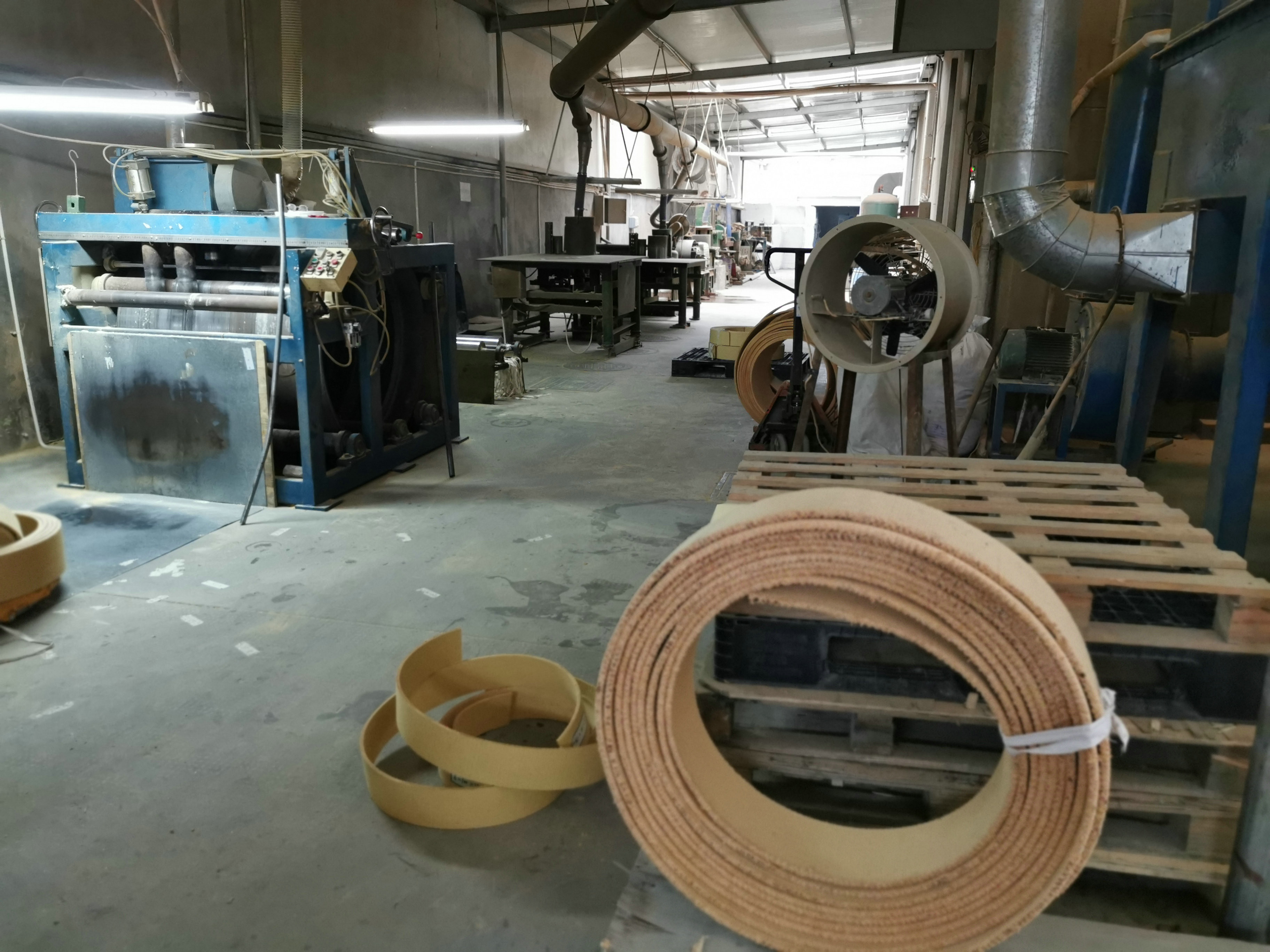

whole cost and quality control.Our factory has 6 weaving machines
and work with many customers around the world. I will make the
quotation list for you after getting your detail size and qty. You
could wechat/whatsapp me at (86) 13771895935 to get more
informations.
Quick Detail:Non-asbestos Woven Brake Lining ship anchor brake windlass brake
melamine resin brass wire
1. Standard: GB/T11834-2000
2. Woven roll brake lining roll specification: (5-30)mm x 500 mm
3. Performance: high intensity and wears ability
4. Application: widely used in decelerating & braking of engineering machines,
industry machines and mining machine.
5. Material: viscose fibre, copper wire, melamine resin
6. Working condition:200°C; pressure: 1.0mpa
7. Remarks: Material, color and length can be made according your request.
Description:Non-asbestos Woven Brake Lining ship anchor brake windlass brake
melamine resin brass wire
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
Specifications:Non-asbestos Woven Brake Lining ship anchor brake windlass brake
melamine resin brass wire
Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Non-asbestos Woven Brake Lining ship anchor brake windlass brake
melamine resin brass wire
Applications:Woven Brake Lining is extensively used in marine and industrial
applications. It is suitable for winch and windlass, hoist, crane,
winder, drilling and workoverrigs, agricultural vehicle, elevator,
industrial drum brakes, mining machinery and construction
machinery. When it is supplied for use on oil immersed
applications,the friction value will be much lower than it is used
in dry conditions.
