Non-asbestos Woven Brake Lining low wear rate brake brass wire ship
anchor brake
Quick Detail:Non-asbestos Woven Brake Lining low wear rate brake brass wire ship
anchor brake
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into specially
formulated polymer resin, through high temperature, low temperature
etc. processing workmanship.
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
Our advantage is that we also produce raw materials of non-asbestos
yarns, then weave into brake lining by ourself, so that we have the

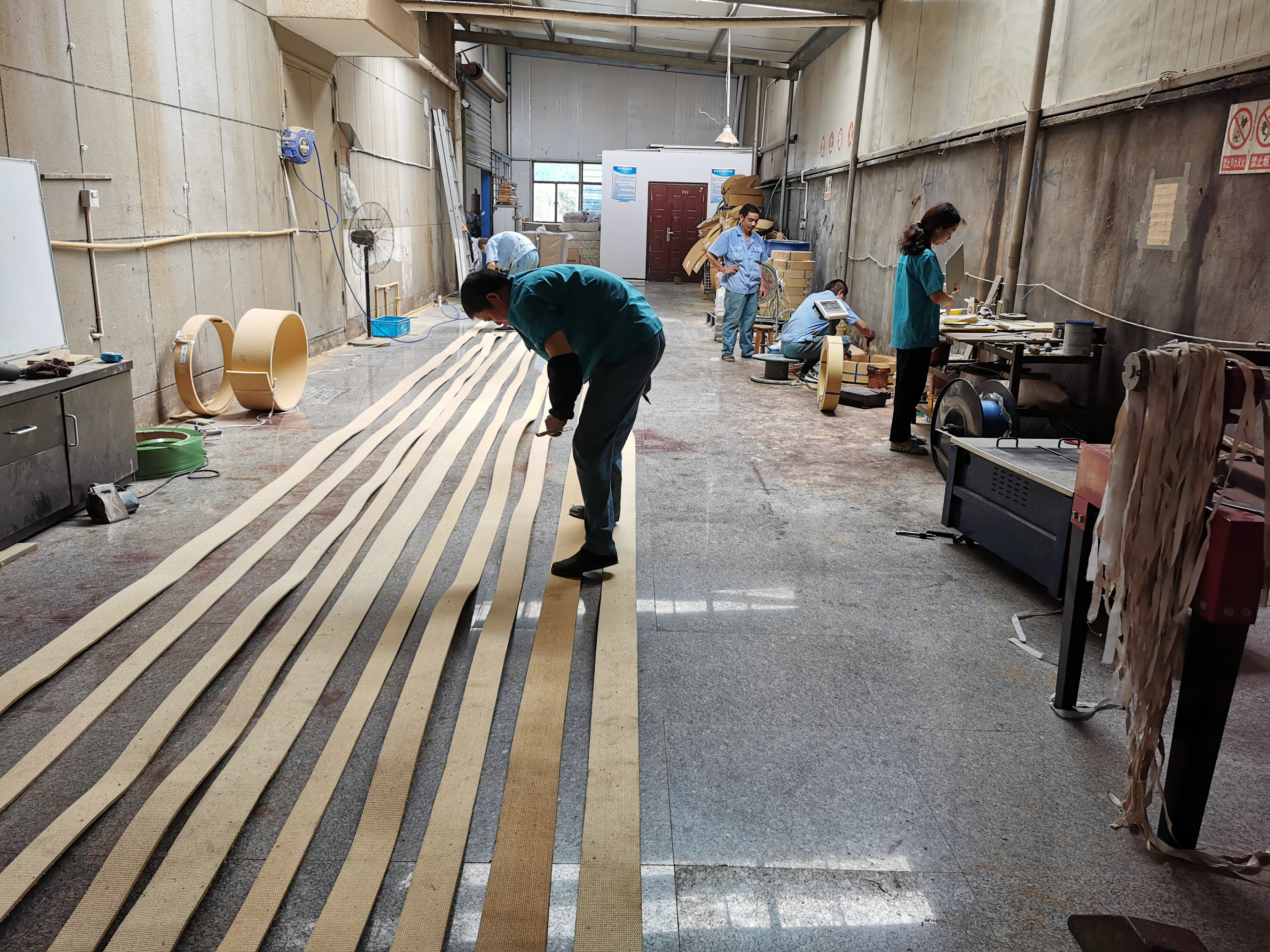

whole cost and quality control.Our factory has 6 weaving machines
and work with many customers around the world. I will make the
quotation list for you after getting your detail size and qty. You
could wechat/whatsapp me at (86) 13771895935 to get more
informations.
Description:Non-asbestos Woven Brake Lining low wear rate brake brass wire ship
anchor brake
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Applications:Woven Brake Lining is extensively used in marine and industrial
applications. It is suitable for winch and windlass, hoist, crane,
winder, drilling and workoverrigs, agricultural vehicle, elevator,
industrial drum brakes, mining machinery and construction
machinery. When it is supplied for use on oil immersed
applications,the friction value will be much lower than it is used
in dry conditions.
Specifications:Non-asbestos Woven Brake Lining low wear rate brake brass wire ship
anchor brake
Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Non-asbestos Woven Brake Lining low wear rate brake brass wire ship
anchor brake
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
