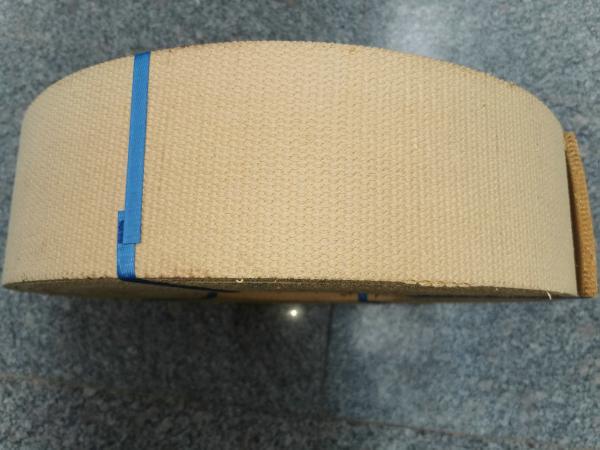

Anchor Winch Asbestos Free Brake Lining , Eco - Friendly Brake
Lining Parts
Ningbo Xinyan Friction Materials Co., Ltd., which is a professional
manufacturer of non asbestos woven brake lining. Our advantage is
that we also produce raw materials of non-asbestos yarns, then
weave into brake lining by ourself, so that we have the whole cost
and quality control.
Our factory has 6 weaving machines and work with many customers
around the world. I will make the quotation list for you after
getting your detail size and qty.
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Quick Detail:Anchor Winch Asbestos Free Brake Lining , Eco - Friendly Brake
Lining Parts
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Description:Anchor Winch Asbestos Free Brake Lining , Eco - Friendly Brake
Lining Parts
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
We own advanced equipment, top technology and skillful workers
which ensure the goods high quality. Our products have passed
ISO9001:2000 international quality system certification and our
factory has import-export operations right, which can make you save
the cost on some extent. We are always playing great role in
international market such as America, Europe and Southeast Asia
etc.
Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your
visiting to our factory and we will offer you superior quality
products and perfect service.
Specifications:Anchor Winch Asbestos Free Brake Lining , Eco - Friendly Brake
Lining Parts
Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor
brake windlass
Our factory could produce the raw materials for brake lining. We
have yarn machines, we produce yarns and then weeve yarns into
brake lining rolls by ourself, so that we could control the whole
quanlity and cost very well.
