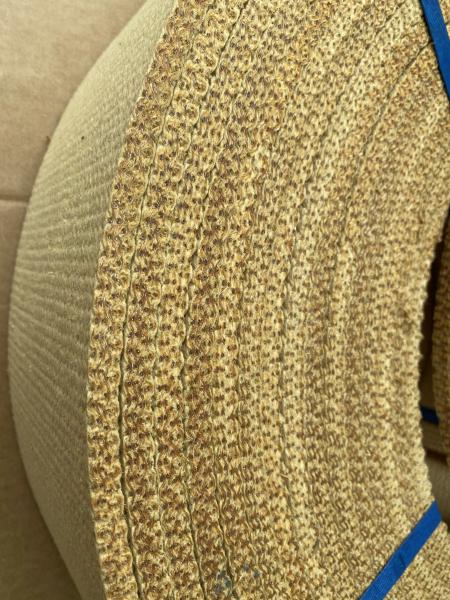

Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch
Anchor Windlass
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced
Japanese loom machinery & equipment then impregnate into
specially formulated polymer resin, through high temperature, low
temperature etc. processing workmanship.
Quick Detail:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch
Anchor Windlass
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch
Anchor Windlass
Non-asbestos Woven Brake Lining selects new-type abrasion resistant
and high temperature resistant non-asbestos yarns which contain
brass wires, viscose fiber, Glass fibre, Aramid fibre ect. All
yarns are woven by advanced loom machinery&equipment then
impregnate into specially formulated polymer resin, through high
temperature, low temperature etc. processing workmanship. Our
product owns high performance of wear resistance, low wear rate,
high tensile strength, good softness, high temperature resistance,
corrosion resistance, oil resistance, long service life and impact
resistance etc. They are definitely 100% non-toxic, pollution free
and environmental products.
Specifications:Wire Reinforced Non Asbestos Woven Brake Lining For Mooring Winch
Anchor Windlass
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor
brake windlass
Our factory could produce the raw materials for brake lining. We
have yarn machines, we produce yarns and then weeve yarns into
brake lining rolls by ourself, so that we could control the whole
quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers
around the world. I will make the quotation list for you after
getting your detail size and qty.
