Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake
Bands Made for marine
Ningbo Xinyan is a professional manufacturer of Non-asbestos
friction material in China. More than 80% of our products have been
exported to European, Asian, Africa, South American markets. As the
leading manufacturer of woven brake lining in the world, we are
stable and sustaining partner of the world famous winch maker.
Relying on superior quality, strong technical power, excellent
service, prompt delivery, We win good reputation and recognition
from the domestic and abroad market, and has built long-term and
friendly business relationship with the large state-owned
enterprise and world famous companies. With comprehensive test
equipment, Ningbo Xinyan is capable to offer the compared testing
service and customized friction products.
Quick Detail:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake
Bands Made for marine
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and
transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Description:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake
Bands Made for marine
Our product owns high performance of wear resistance, low wear
rate, high tensile strength, good softness, high temperature
resistance, corrosion resistance, oil resistance, long service life
and impact resistance etc. They are definitely 100% non-toxic,
pollution free and environmental products.
Specifications:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake
Bands Made for marine
Model: BXS-Y Non-asbestos Woven Brake Linging
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires,
Cashew Nut Oil resin.
Working Conditions: 200℃,Static Pressure: 4.0Mpa.
Applied field: Widely used for braking deceleration and
transmitting power of big power machineries, such as ship winch,
dock crane, drilling machineries, lifting machine, building
machinery etc.
Specification: T(5~30)x W(≤500)mm; Available Length: 10m,15m,20m
Color: Brown
Competitive Advantage:Woven Material Brake Band Lining in Roll for Crane Ship Boat Brake
Bands Made for marine

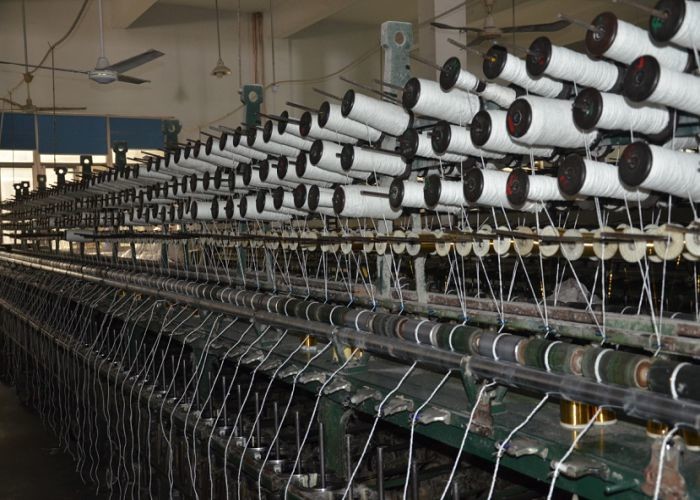

Our factory could produce the raw materials for brake lining. We
have yarn machines, we produce yarns and then weeve yarns into
brake lining rolls by ourself, so that we could control the whole
quanlity and cost very well.
Our factory has 6 weaving machines and work with many customers
around the world. I will make the quotation list for you after
getting your detail size and qty.
Please send us inquiry by email or wechat/whatsapp me at (86)
13771895935 to get more informations
