    Brass Wire Reinforced Melamine Resin Industrial Brake Lining

    Ask Lasest Price
    Brand Name : DALU
    Model Number : BXS-M
    Certification : GB/T 19001-2016/ISO 9001:2015
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 Tons
    Delivery Time : 6 weeks after down payment
    • Product Details
    • Company Profile

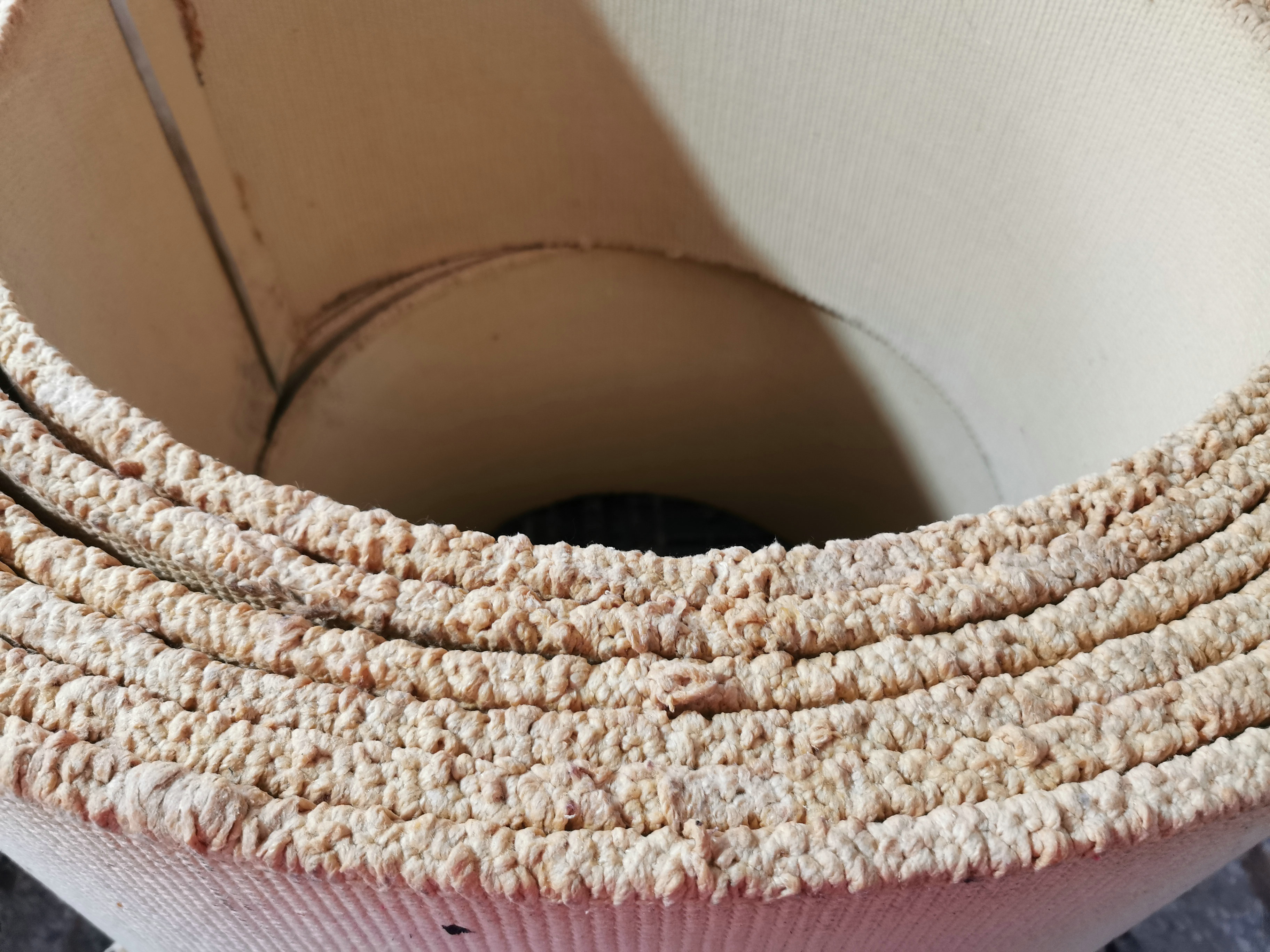

    Brass Wire Reinforced Melamine Resin Industrial Brake Lining

    Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced ship winch brake


    Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.


    We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

    Brass Wire Reinforced Melamine Resin Industrial Brake Lining

    Quick Detail:Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced ship winch brake


    Model: BXS-M Non-asbestos Woven Brake Lining
    Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
    Working Conditions: 250℃,Static Pressure: 4.0Mpa
    Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
    Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

    TemperatureCoefficient of friction(μ)Wear rate(v)(cm³/N.m)
    100℃0.35~0.65≤0.7 x 10-7
    150℃0.35~0.65≤1.1 x 10-7
    200℃0.30~0.60≤1.5 x 10-7
    250℃0.25~0.60≤2.5 x 10-7

    Brass Wire Reinforced Melamine Resin Industrial Brake Lining


    Specifications:Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced ship winch brake


    Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control. Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could wechat/whatsapp me at (86) 13771895935 to get more informations.
